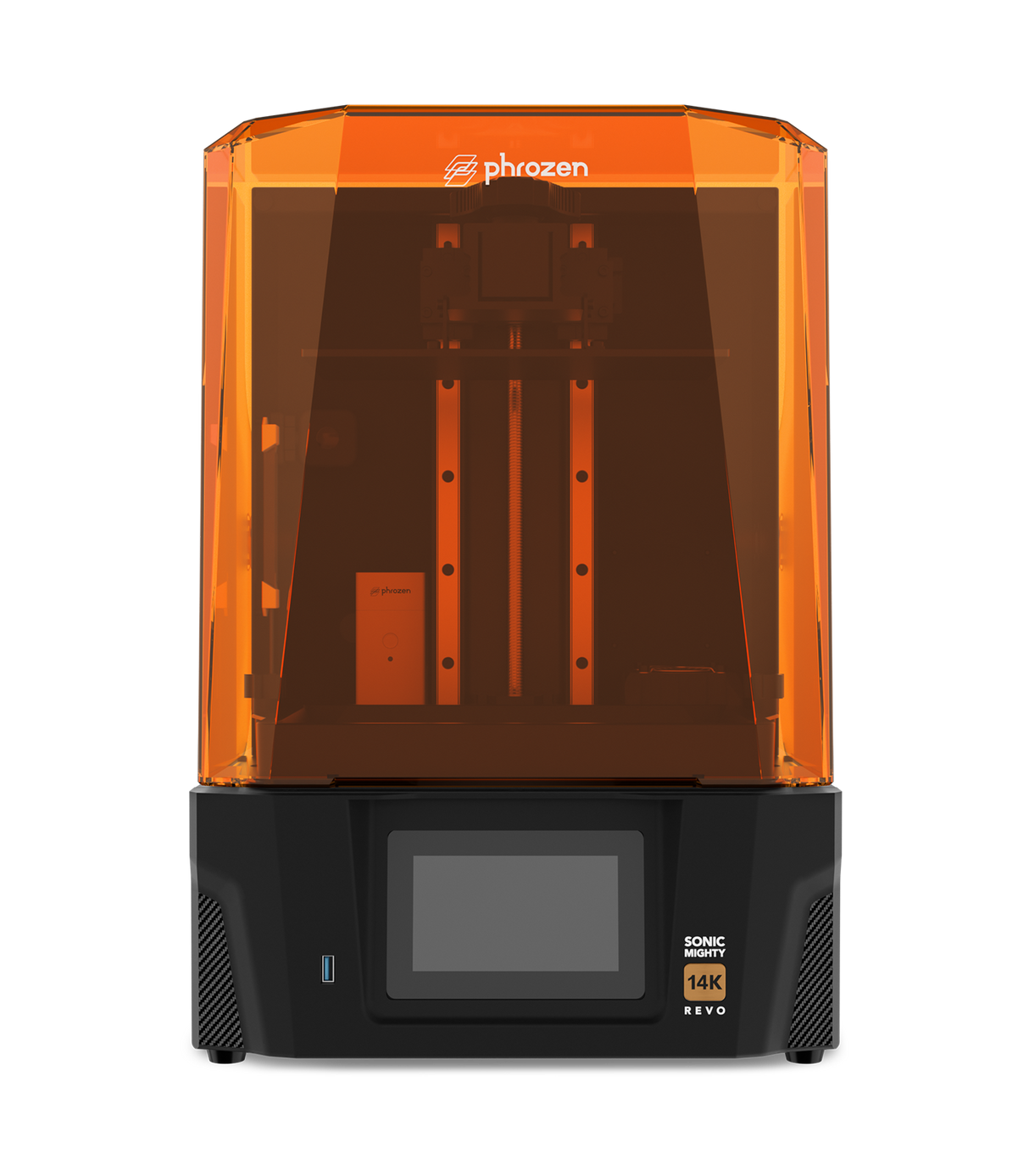

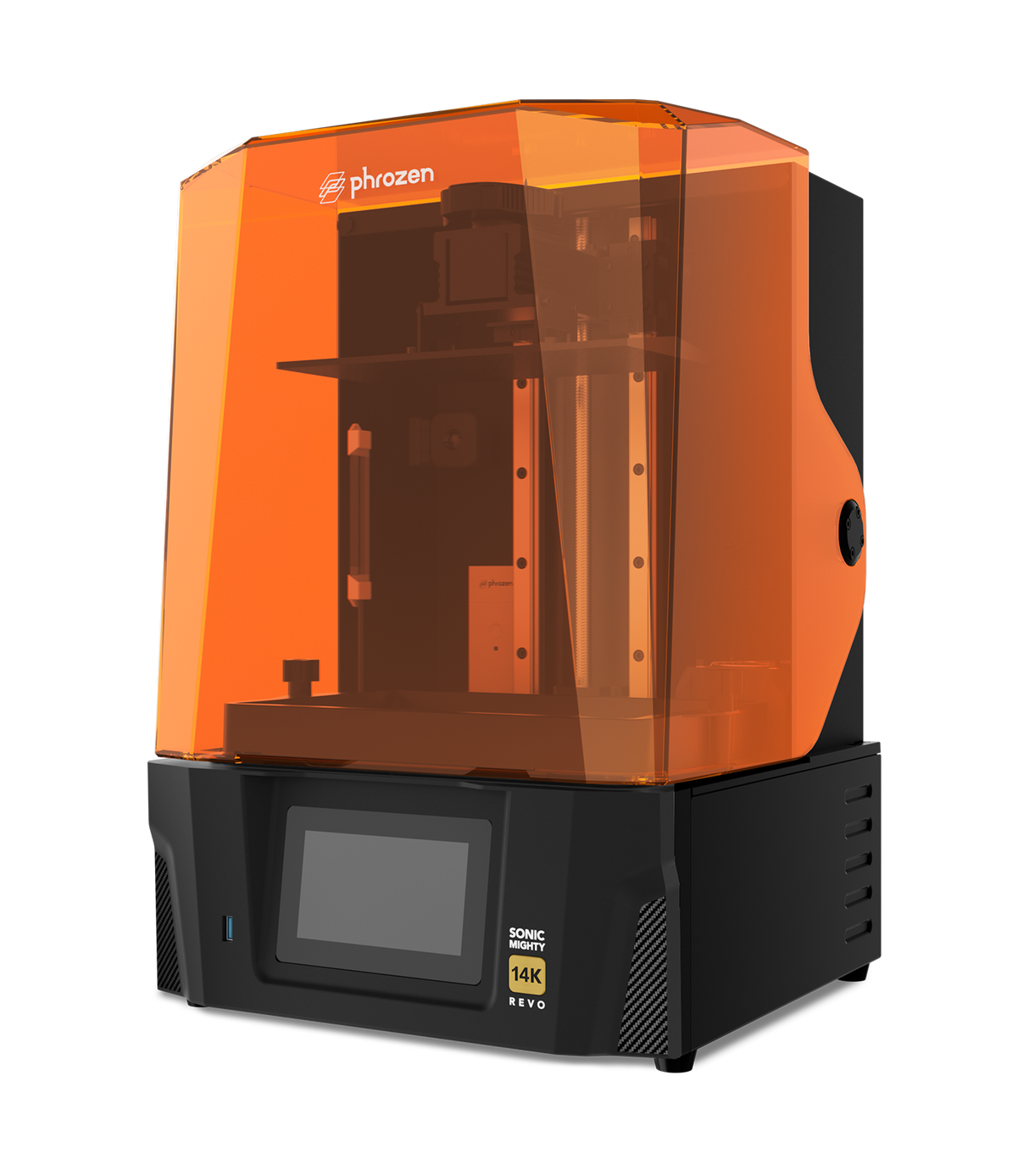

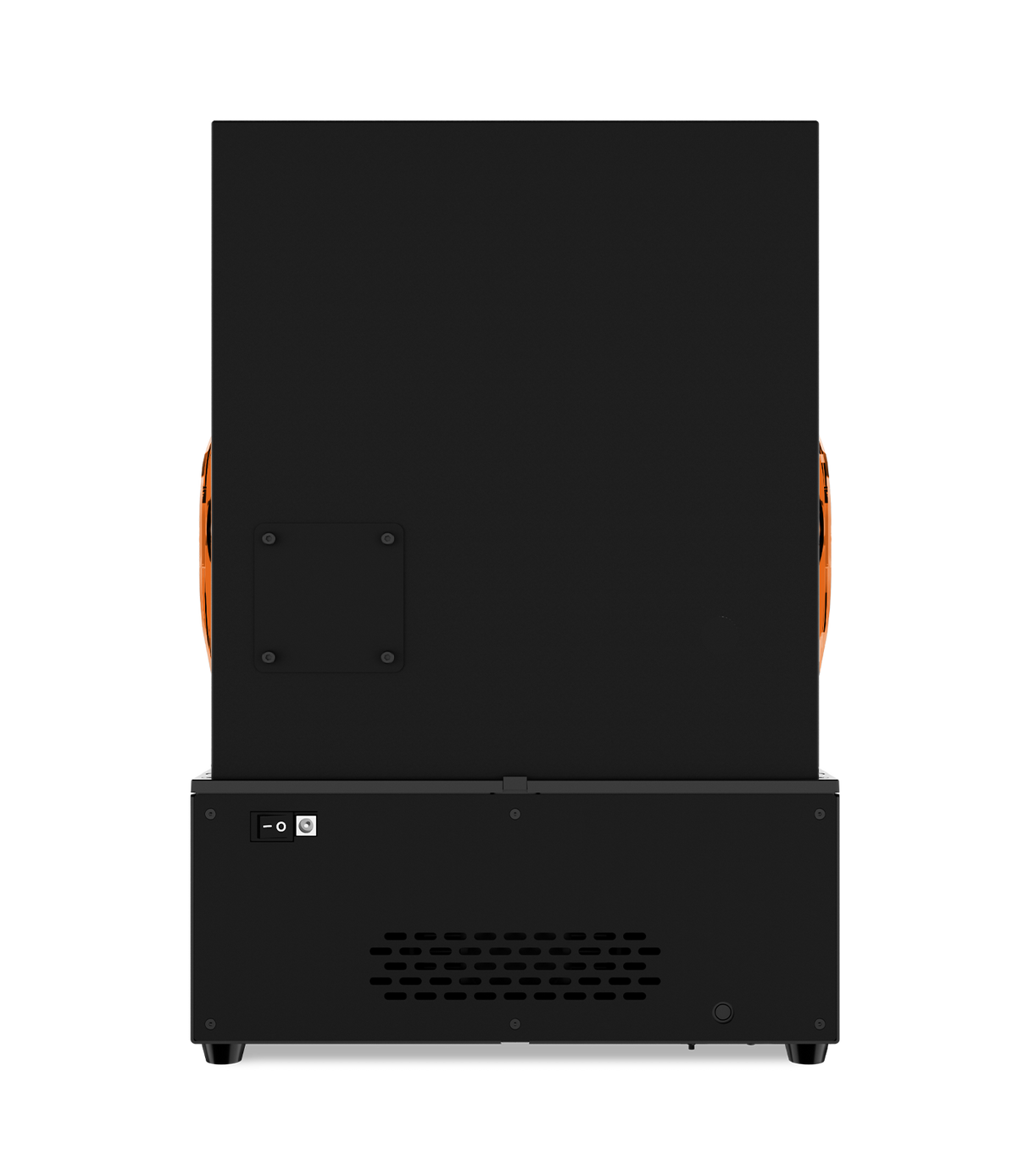

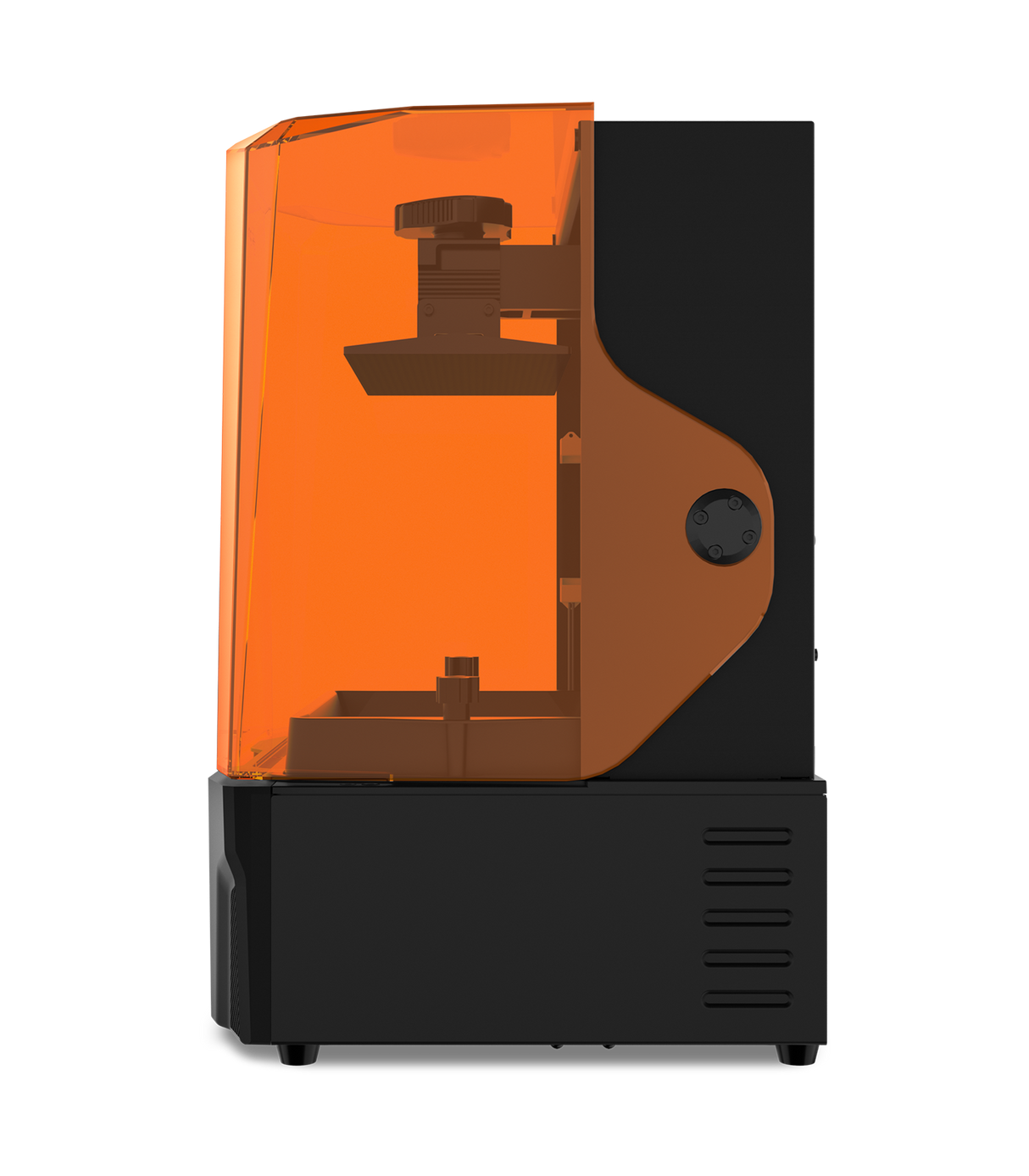

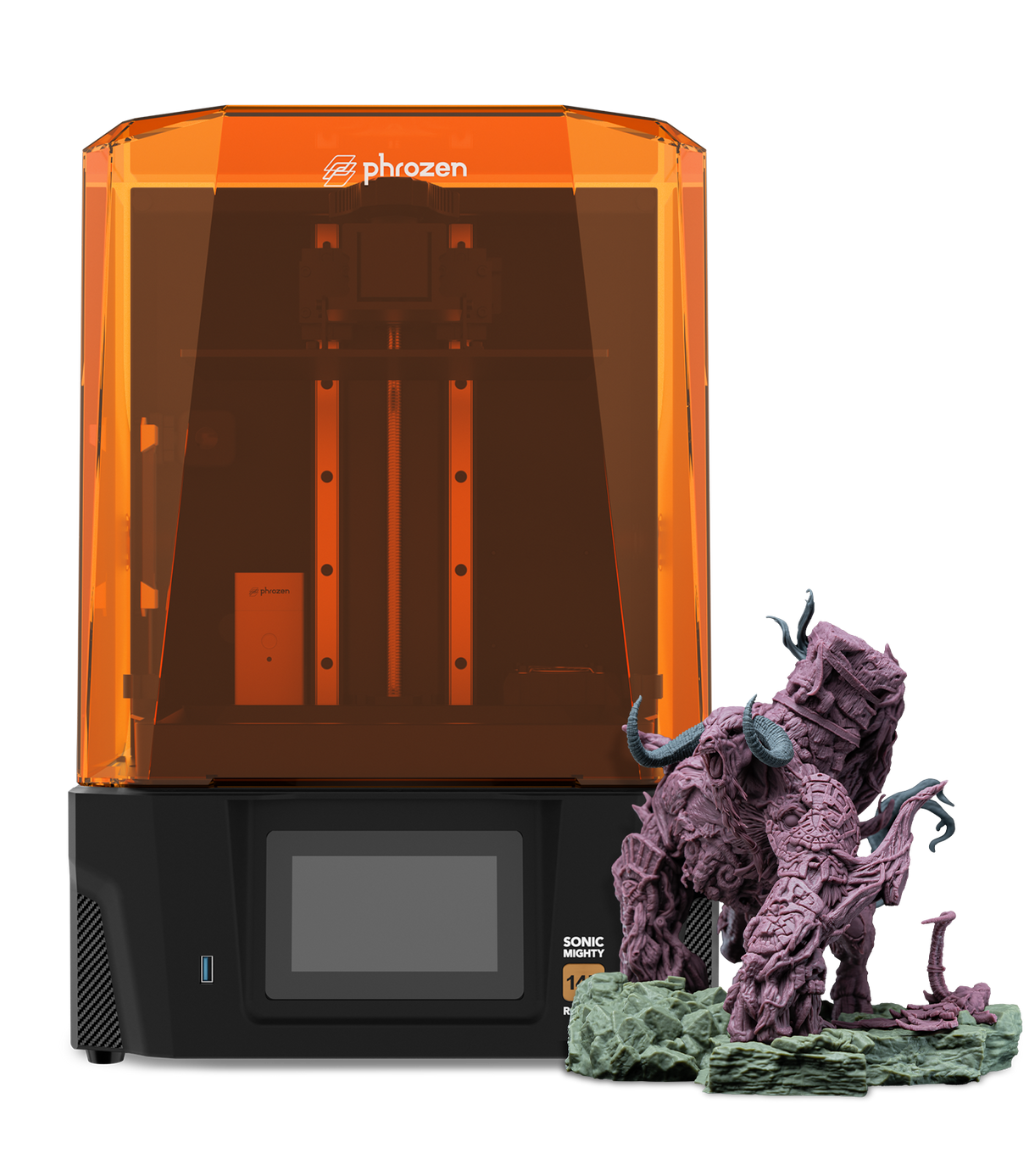

Phrozen Sonic Mighty Revo 10.1" LCD 3D Printer
$849.99
Unit price
/
Unavailable
Shipping calculated at checkout.
- Ultra-high 14K resolutions with smart sensors.
- 24/7 mobile integrated systems.
- High-quality, all-metal frame.
- Intuitive, user-friendly interface.
- Versatile, suitable for medium and small prints.
Phrozen Sonic Mighty Revo 10.1" LCD 3D Printer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Tariff
- Please expect a standard lead time of approximately 1 week.
- Currently, the Phrozen US Store only ships to the mainland United States. For non-contiguous states and other U.S. territories, please purchase through our Global Store.
- No refunds will be provided if a customer refuses to collect or returns their product(s) due to related costs.
- Customers are responsible for customs clearance in all countries.
- For more information, please refer to our Shipping page.
Return & Warranty
- According to the Consumer Protection Act, you have the option to request a refund within a period of 13 days. However, please note that the refund does not cover the shipping fees and tax/VAT charges. To initiate the refund process, you need to submit a request to the Phrozen Support Center within this 13-day timeframe. It is important to ensure that the product is returned in its original condition, and the entire batch order must be sent back. For more details, please refer to our Refund Policy page.
-
All products purchased from the official website of Phrozen are warranted under different terms. Phrozen offers a one-year warranty for all our products except consumables and components; this includes the LCD screen and the FEP film. LCD screens for the Sonic Mighty 8K, Sonic Mini 8K, Sonic Mega 8K, Sonic Mini 4K, and Sonic 4K are covered under a 3-month warranty. For more details, please refer to our Warranty page.
*Kind reminder: We would suggest pairing our printers with Phrozen's resins to prevent surface paint damage. If a problem occurs, please feel free to contact our support team.
Specifications
Specifications
-
Printing VolumeL22.3 x W12.6 x H23.5 cm
-
Printing SpeedAvg. 450 layers/hr
-
XY Resolution16.8 x 24.8 µm
-
Layer Thickness0.01-0.30 mm
-
Light SourceLinear Projection LED Module
-
LCD Specification10.1" 14K Mono LCD (13320 x 5120 pixels)
-
Operation5" Touch Panel
-
Slicer Software-
-
Compatible File Format.CTB/.PRZ
-
ConnectivityUSB | Wi-Fi
-
Printer SizeL35.3 x W34.5 x H51.7 cm
-
Printer Weight18 kg
-
Power ReruirementAC100-240V ; 50/60HZ
-
System PowerMax 240W
-
RailDual Linear Rails
-
ScrewBall Screw
-
Release FilmnFEP Film

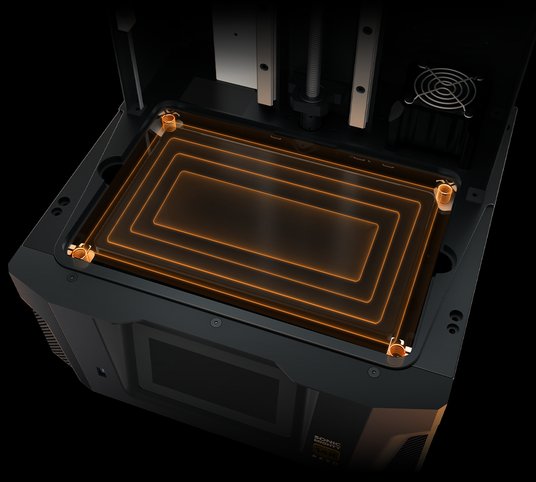

Have an Extra Eye on Your Printer
Experience the new Revo detection system thanks
to our patented 3-point piezoelectric sensor.
Integrated seamlessly with the Phrozen GO App, it's
connected 24/7 to your phone for timely
monitoring.
Ultra-High 14K Resolution
Provides ultra-high printing resolution, ensuring the highest quality in fine prints suitable for personal and professional use.
1 Minute LCD Replacement
LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.
Which is the Best for You?
| Facet | ||||
|---|---|---|---|---|
| Price | ||||
| Price |
$280.49
Unit price
/
Unavailable
|
$499.99
Unit price
/
Unavailable
|
$524.99
Unit price
/
Unavailable
|
$849.99
Unit price
/
Unavailable
|
| Printing Volume | ||||
| Printing Volume | L20 x W12.5 x H22 cm
| L21.8 x W12.3 x H23.5 cm
| L21.8 x W12.3 x H23.5 cm
| L22.3 x W12.6 x H23.5 cm
|
| Printing Speed | ||||
| Printing Speed | Max 80 mm/hr
| Max 70 mm/hr Avg. 400 layers/hr
| Avg. 400 layers/hr
| Avg. 450 layers/hr
|
| XY Resolution | ||||
| XY Resolution | 52 µm
| 28 µm
| 19 x 24 µm
| 16.8 x 24.8 µm
|
| Layer Thickness | ||||
| Layer Thickness | 0.01-0.30mm
| 0.01-0.30 mm
| 0.01-0.30 mm
| 0.01-0.30 mm
|
| Light Source | ||||
| Light Source | 405nm ParaLED Matrix 2.0
| Linear Projection LED Module
| Linear Projection LED Module
| Linear Projection LED Module
|
| LCD Specification | ||||
| LCD Specification | - | 10.1" 8K Mono LCD
| 10.1" 12K Mono LCD (11520 x 5120 pixels)
| 10.1" 14K Mono LCD (13320 x 5120 pixels)
|
| Printer Size | ||||
| Printer Size | L29.3 x W29.3 x H43.2 cm
| L33.7 x W33.7 x H51.6 cm
| L33.7 x W33.7 x H51.6 cm
| L35.3 x W34.5 x H51.7 cm
|
| Printer Weight | ||||
| Printer Weight | 8 kg
| 14.3 kg
| 14.3 kg
| 18 kg
|
| Rail | ||||
| Rail | - | Dual Linear Rails
| Dual Linear Rails
| Dual Linear Rails
|
| Screw | ||||
| Screw | - | Lead Screw
| Lead Screw
| Ball Screw
|
*All specifications have been tested in a laboratory.
Please note that certain specifications may be subject to change without prior notice.
